MACHHUB Gateway Hardware

Industrial Edge, Ready Out of the Box.

MACHHUB Gateway ships with MACHHUB Platform pre-installed on purpose-built hardware — a fanless, DIN-rail ready metal enclosure designed for industrial environments.

MACHHUB Platform Pre-installedPlatform Bundled — No Hardware-Only SalesDIN Rail MountableFanless Metal EnclosureDC 10–30 VIndustrial I/O

Order now

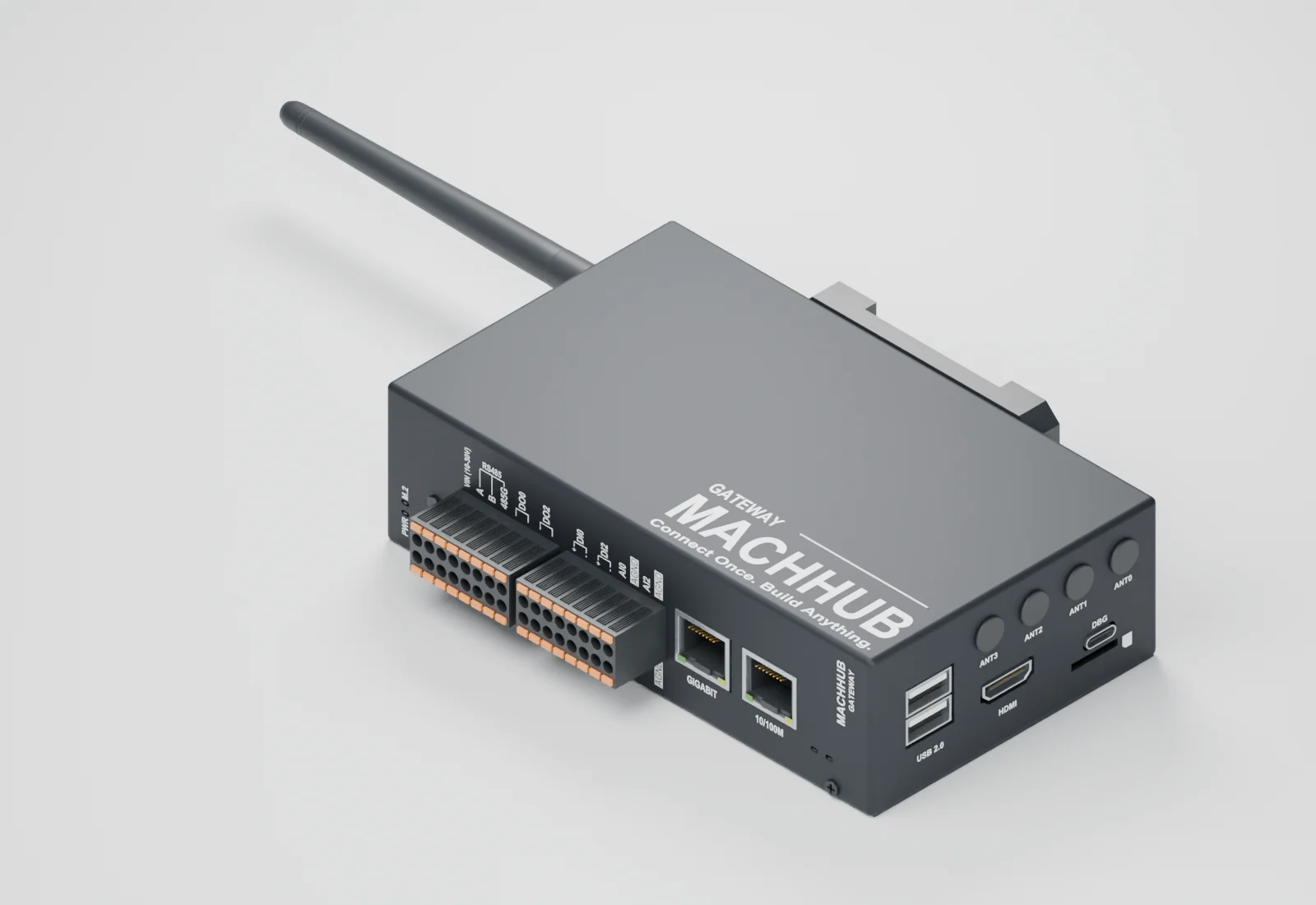

The MACHHUB Gateway MCH-A5, seen from above: terminal blocks, two Ethernet ports, USB, HDMI and the antenna.

MCH-A5, part by part

The unit

Metal, and no moving parts.

An enclosure that cools through its own casing, so there is no fan to clog and no filter to change. It clips onto DIN rail in the cabinet you already have, at 141.2 by 83.5 by 39.5 mm.

Metal, and no moving parts.
Push the wire in. That is the connection.
Two legs, kept apart.
A screen and a keyboard, at the panel.
Where the cable never reached.

Model Lineup

Choose Your Series

Both series share the same industrial platform and interface set. Select the compute generation that fits your workload and storage needs.

Entry Series

MCH-A Series

Broadcom BCM2711 — Quad-Core Cortex-A72 @ 1.5 GHz

CPU

Quad-Core Cortex-A72 @ 1.5 GHz

GPU

700 MHz VideoCore VI — OpenGL ES 3.0

Max RAM

Up to 8 GB

Max Storage

Up to 32 GB + M.2 NVMe

Available Variants

MCH-A-W432

4 GB RAM

32 GB eMMC

MCH-A-W832

8 GB RAM

32 GB eMMC

Order now

Recommended Series

MCH-A5 Series

Broadcom BCM2712 — Quad-Core Cortex-A76 @ 2.4 GHz

CPU

Quad-Core Cortex-A76 @ 2.4 GHz

GPU

800 MHz VideoCore VII — OpenGL ES 3.1

Max RAM

Up to 16 GB

Max Storage

Up to 64 GB + M.2 NVMe

Available Variants

MCH-A5-W0832 Recommended

Recommended for MACHHUB

8 GB RAM

32 GB eMMC

MCH-A5-W1664

16 GB RAM

64 GB eMMC

Order now

All MACHHUB Gateway units are sold as a complete bundle — hardware with MACHHUB Platform pre-installed. Hardware-only purchases are not available. Wireless variants only. Contact us for custom RAM/eMMC configurations.

Connectivity

Built for the Plant Floor

Every port and interface you need to connect plant-level devices directly — no extra hubs or adapters required.

Dual-Band Wi-Fi

2.4 / 5 GHz 802.11 b/g/n/ac + Bluetooth 5.0 / BLE

Dual Ethernet

1× GbE for IT network, 1× 100 Mbps for OT/field devices

RS-232 & RS-485

Isolated serial ports for PLC, VFD, meter, and sensor integration

Isolated Digital I/O

4× DI + 4× DO, rated up to 50 V for direct field wiring

Analog Input

4× AI supporting 0–5 V, 0–10 V, and 0–20 mA from sensors

M.2 NVMe

Expandable storage for large historian datasets

Crypto Authentication

ATECC608B secure element for hardware-rooted device identity

Real-Time Clock

PCF85063A RTC keeps accurate time through power interruptions

Technical Specifications

MCH-A vs MCH-A5

Full specification comparison between the two series.

Specification	MCH-A	MCH-A5
Processor	Broadcom BCM2711	Broadcom BCM2712
CPU Cores	Quad-Core Cortex-A72 @ 1.5 GHz	Quad-Core Cortex-A76 @ 2.4 GHz
GPU	700 MHz VideoCore VI	800 MHz VideoCore VII
RAM Options	2 GB / 4 GB / 8 GB	2 GB / 4 GB / 8 GB / 16 GB
eMMC Options	16 GB / 32 GB	8 GB / 16 GB / 32 GB / 64 GB
Wireless	2.4 / 5.0 GHz Wi-Fi, BT 5.0 + BLE	2.4 / 5.0 GHz Wi-Fi, BT 5.0 + BLE
HDMI	1× HDMI 2.0 (4K @ 60Hz)	1× HDMI 2.0 (4K @ 60Hz)
USB	2× USB 2.0 + 1× USB-C	2× USB 2.0 + 1× USB-C
Ethernet	1× GbE + 1× 100 Mbps	1× GbE + 1× 100 Mbps
Digital I/O	4× DI + 4× DO (isolated, up to 50 V)	4× DI + 4× DO (isolated, up to 50 V)
Analog Input	4× AI (0–5 V / 0–10 V / 0–20 mA)	4× AI (0–5 V / 0–10 V / 0–20 mA)
Serial Comms	1× RS-232 + 1× RS-485 (isolated)	1× RS-232 + 1× RS-485 (isolated)
Expansion	1× Mini PCIe (USB 2.0 + SPI)	1× Mini PCIe (USB 2.0 + SPI)
Power Supply	DC 10–30 V (surge protected)	DC 10–30 V (surge protected)
Real-Time Clock	PCF85063A	PCF85063A
Crypto Auth IC	ATECC608B	ATECC608B
Display	0.96″ OLED (SSD1306)	0.96″ OLED (SSD1306)
Enclosure	Metal, fanless, DIN rail mount	Metal, fanless, DIN rail mount
Dimensions	141.2 × 83.5 × 39.5 mm	141.2 × 83.5 × 39.5 mm
Warranty	12 months	12 months

M.2 NVMe SSD is an optional add-on for MCH-A (not included by default). Contact us for custom configurations.

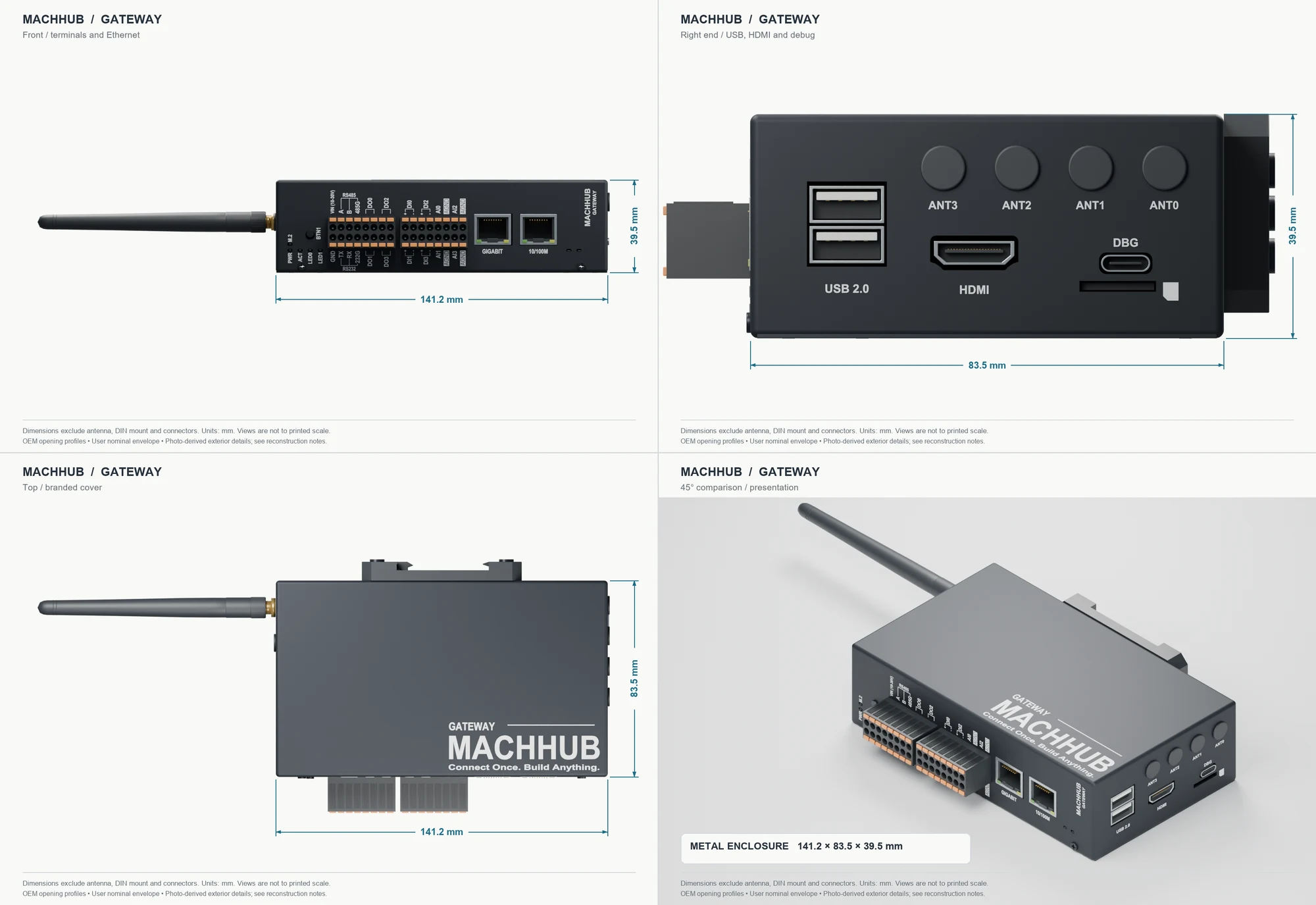

Dimensioned drawing of the MCH-A5: 141.2 mm wide, 83.5 mm tall and 39.5 mm deep, with the DIN rail carrier and terminal positions marked. — Every dimension you need to size a cabinet, in millimetres.

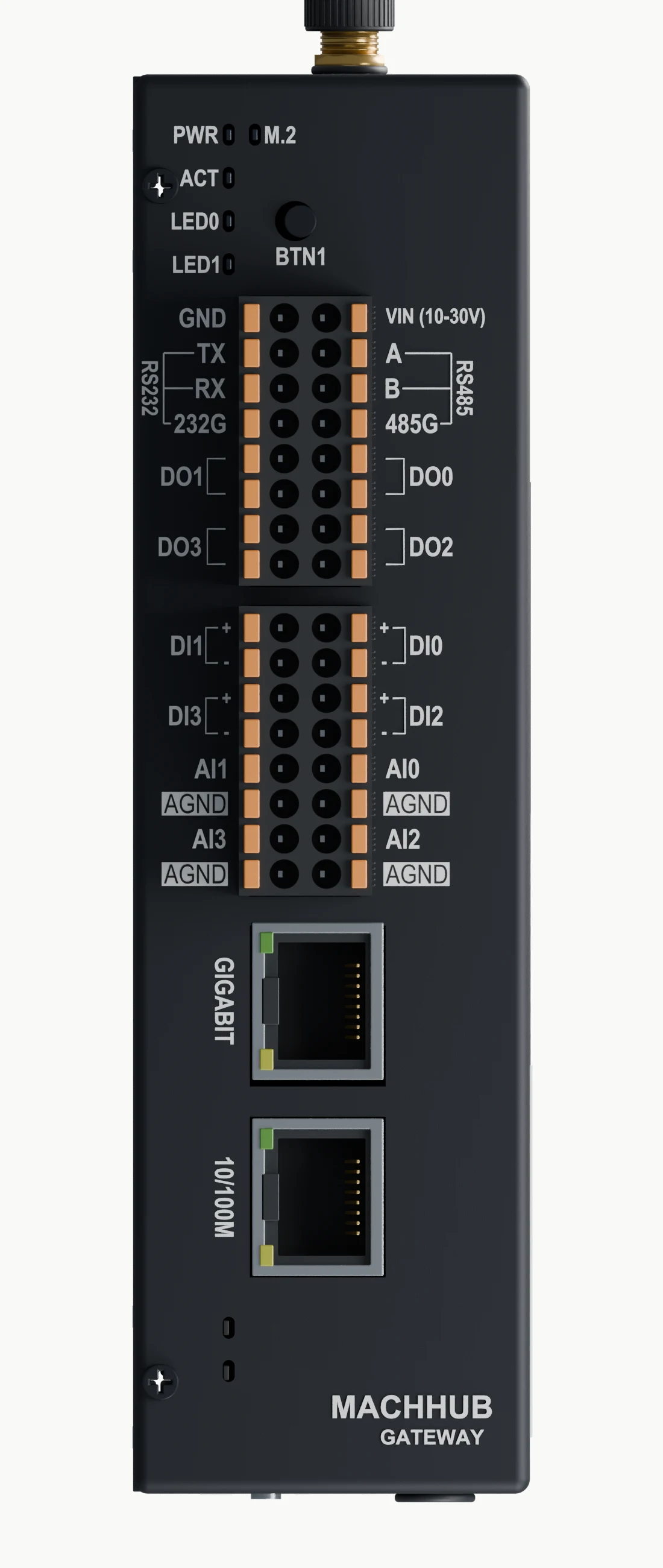

The terminal legends on the MCH-A5: power in at 10 to 30 V, RS-232 and RS-485 pairs, four digital outputs, four digital inputs, and four analogue inputs with their grounds. — What lands on each terminal, as it is printed on the unit.

Ready to Deploy?

Contact us for pricing, availability, and custom configurations. Our team will help you select the right model for your deployment.

MACHHUB Gateway is sold exclusively as a complete bundle with the MACHHUB Platform. Hardware-only purchases are not available at this time.
